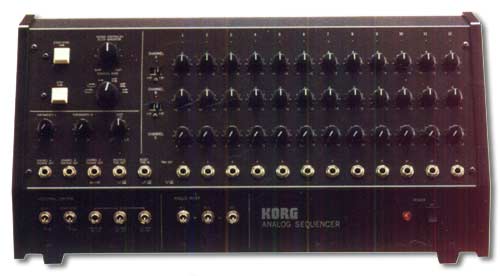

Korg SQ-10 Analog Sequencer

Can be Used as a Preset Memory Bank for Synthesizer Modules as Well as for Automatic Performance.
3-Channel Output allows pitch, tone color and timing variation for up to 24-step sequences.

An additional benefit of this analog design is that the sequencer can act as a preset memory bank by storing VCO, VCF, VCA and other modules' control voltages for instant recall while playing. Automatic playback synchronized with rhythm machine timing is another exciting application (via trigger output on KR-55 or KR-33).

SPECIFICATIONS
VOLTAGE CONTROLLED CLOCK GENERATOR: Speed Control
SEQUENCE MODE: 24 Steps x 1 + 12 Steps Switch: Start/Stop (Automatic), Step (Manual)
PORTAMENTO: Portamento Channel A.B
TRIGGER DUTY: LP (Multiple Trigger)
SEQUENCE CONTROL: Channel A.B.C. (1-.12), Trigger Output (1-12), LED (1-12) oSEQUENCE VOLTAGE OUTPUT: Channel A.B (-5--+5 V/-1-+1 V),Channel C (0-+5 V) MULTIPLE TRIGGER OUTPUT RESET INPUT: EXTERNAL CHANNEL. Step ( 1 ). Start/Stop , Clock Speed x 3 (Hz/V, x 2/V, 2/V) Hz/V, 0-+5 V
ANALOG MIXER: Input 1 + 2 = Output

POWER SWITCH
DIMENSIONS: 499 (W) x 249 (H) x 170 (D) mm
WEIGHT: 5.1 kg
ACCESSORIES: Patch Cords 35 cm x 1, 50 cmx1,1mx1
POWER CONSUMPTION: Voltage (Local Voltage, 50/60 Hz), Wattage (5.4 W)
