Polisix Korg

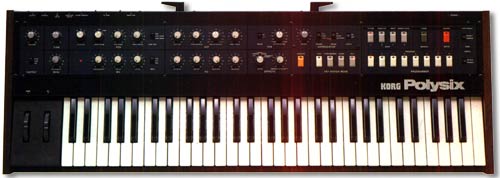

  Korg PolySix 6-voice Programmable Polyphonic synthesizer

Strumento storico, primi sintetizzatori polifonici a basso costo. Suoni non eccezionali, tipici della Korg di quel periodo..




6-voice Programmable Poly with32 Programs Tape Interface, Programmable Chorus/Ensemble, Unison Mode and Arpeggiator.

The Poly-six features 32-program memory for instant sound recall.

Full Edit capabilities allow you to temporarily alter programs while playing, to make permanent memory changes and to freely move programs about in the memory.

Rapid 8 second Cassette Interface allows unlimited additional program storage, and with "Verify" mode, your time spent in creating programs is protected from loss.

The synthesizer section is equipped with VCOs featuring Sub-Octaves and PWM for fullest sounds, newly developed - 24dB/Oct VCFs, plus programmable Modulation and Effects sections, which add variable Chorus/ Phase/Ensemble effects to any sounds desired.

The Polysix can also be played in Unison for incredible lead synthesizer sounds, and the full featured Arpeggiator memorizes and sequences chords in one octave or across the entire keyboard.


  SPECIFICATIONS

 KEYBOARD: 61 Keys (C - C)

VOICES: 6; Program and edit functions are possible for items in brackets

VCO: Octave Selector (16',8', 4'), Waveform (N , PW, PWM), Pulse Width/PWM Sensitivity Adjustment, PWM Speed

SUB-OSCILLATOR: Off, loc Down 2oct Down

VCF: Cutoff Frequency Adjustment, Resonance Adjustment, Envelope Generator Modulation Sensitivity Adjustment, Keyboard Tracking Adjustment (0-150%)

ENVELOPE GENERATOR: Attack Time, Decay Time, Sustain Level, Release Time VCA: Mode. Switch (EG, n ), Attenuator -10dB - +10dB,11-Steps)

MODULATION GENERATOR: Frequency, Delay Time. Level, Modulation (VCO, VCF, VCA)

EFFECT: Mode (Off, Chorus, Phase, Ensemble), Speed/Sensitivity Adjustment

KEY ASSIGN MODE: Poly, Unison, Chord Memory, Hold ARPEGGIATOR: Speed, (0.2-20Hz), Range (Full, 2oct, loci), Mode (Up, Down, Up/Down), Latch (On/Off), Arpeggio (On/Off) TUNE: ±50 Cents BEND: Sensitivity Adjustment (MAX ± 800 Cents) OUTPUT: Level Selector (Off, Low, High), Volume. o

PROGRAMMER: Bank (A, B, C, D,), Program (1-8), Write (Enable, Disable) TAPE INTERFACE: Switch (Enable, Disable), To Tape, From Tape, Verify, Error/Cancel, Tape, Indicator x 2 (Found, Loading) CONTROL WHEEL x 2: Bend, MG

INPUT JACKS: From Tape (With High/Low Switch), Chord Memory, Arpeggio Trigger in ( VCF fcM in (- 5V - +5V)

OUTPUT JACKS: To Tape (With High/Low Switch), Headphone, Output

DIMENSIONS: 980(W) x 373(D) x 132(H) mm - WEIGHT: 11.5kg

ACCESSORIES : Connection Cord, Plug Adaptor (Phone-To-Mini), Memory Cassette

POWER CONSUMPTION: Voltage (Local Voltage 50/60Hz) Wattage 25W

OPTIONAL ACCESSORIES

PEDAL SWITCH PS-1
HEADPHONES KH-1000 0 STAND ST-2B 0 HARD CASE SOFT CASE
