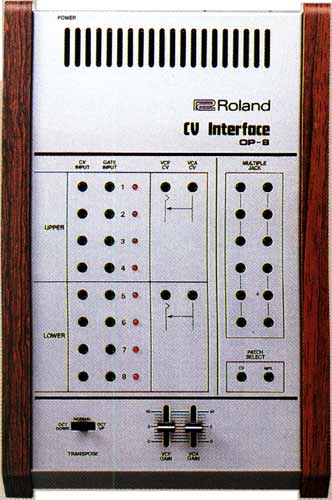

Il Roland OP - 8 è un'interfaccia progettata per collegare l' MC 4 Microcomposer ad un sintetizzatore polifonico Roland tramite l'interfaccia DCB (Digital Communication Bus).

• The OP-8 is a interface designed to allow the MC-4 MicroComposer to automatically control polyphonic synthesizers such as the Jupiter-8 and Juno-60 which have the built-in DCB (Digital Communication Bus).

The Jupiter-8 and Juno-60 can be used to playback compositions from the MC-4 and the synthesizers program memory can then be used to add a wide variety of sounds to the composition.

• The Jupiter-8 and Juno-60 connect to the OP-8 in different ways and, therefore, two connectors are provided. The following explanations and diagrams illustrate this point.

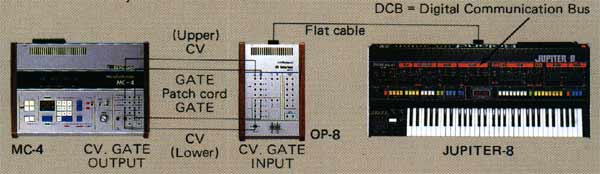

How to Connect the OP-8 and Jupiter-8

• The OC-8 optional connector must be used to connect the OP-8 and Jupiter-8 unless the Jupiter-8A is used.

The Jupiter-8A has a factory installed connector.

• The OP-8 has 8 CV input jacks and 8 Gate input jacks to receive outputs from the MicroComposer.
Jacks 1 through 4 are used to control the upper manual of the Jupiter-8. Jacks 5 through 8 are for the lower manual.

The availability of some of the functions is dependent upon the setting of the Jupiter-8 key mode switch.

• In addition to interval control, the OP-8 is capable of controlling the Jupiter-8's VCF.
It applies a voltage ranging from 0 to 10V to the CV jack to control the VCF cutoff frequency.
The OP-8 can also be utilized to control the VCA to pro-duce a variety of expressions.

DCB = Digital Communication Bus

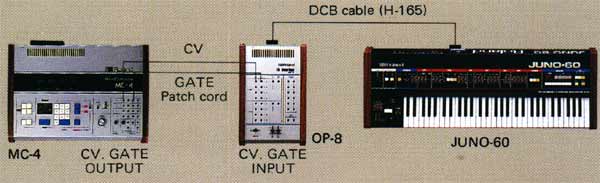

Connection of the OP-8 and JUNO-60

• It is necessary to use a H-165 cable to connect the DCB connector on the Juno to the OP-8.
• Only six channels of information from the MC-4/OP-8 can be utilized by the Juno-60.

When the OP-8 is connected to the Juno-60, the OP-8's CV jack, Gate input jack, and Transpose switch are operable.

The Transpose switch lets you change any note one octave, either up or down.

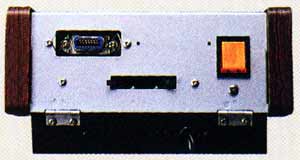

back panel

• EXT INPUT: CV (0 - 15V output: up to 112 corresponding to 9.33V.), GATE (OFF = OV, ON = 2.4 - 15V active high), VCA CV (O - 10V typical 50 corresponding to 4.167V.), VCF CV (same as above.)

• PATCH SELECT: CV DATA (1 - 32 JUPITER-8 accepts 1 to B), MPX (OV: PATCH SELECT DISABLE, 2.4 - 15V: PATCH SELECT ENABLE)

• MULTIPLE JACKS

• TRANSPOSE SWITCH: oct down/normal/oct up o VCF GAIN KNOB o VCA GAIN KNOB o Connector: DCB cable (for JUNO-60), Flat cable (for JUPITER-8)

• Dimensions: 218(W) x 124(H) x 348(D)mm (8.58" x 4.88" x 13.7") • Weight: 3.2 kg (7.04 lb.)

• Accessory: DCB cable (H-165) x 1
